محل منبع:
چین
نام تجاری:
Kelong
گواهی:
ISO9001 / IRIS
شماره مدل:
KL53
Contact Us

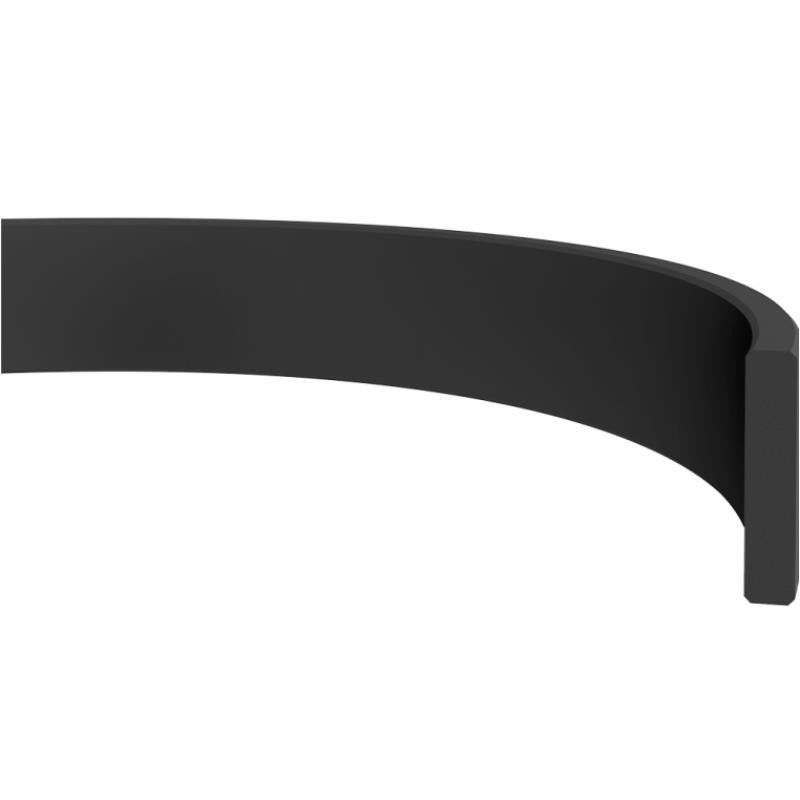

نوار یاتاقان حلقه راهنما هیدرولیک توانایی تحمل بارهای جانبی را دارد و "لغزش چسب" بین قطعات متحرک را از بین می برد.سطح مقطع مستطیلی با ابعاد دقیق از ترکیب خاصی از مواد PTFE و برنز تولید شده است.
دارای مقاومت حرارتی عالی و مقاومت در برابر خزش است و آن را برای یاتاقان هایی با حرکت رفت و برگشتی، نوسانی یا چرخشی، چه روغن کاری شده و چه غیر روانکاری شده، مناسب می کند.محدوده استاندارد اندازه های مقطع ما متناسب با طیف وسیعی از قطر میله یا پیستون است.
• ماشین آلات کشاورزی
• ماشین آلات سیار
• سیلندرهای صنعتی
• سیلندرهای سبک و متوسط

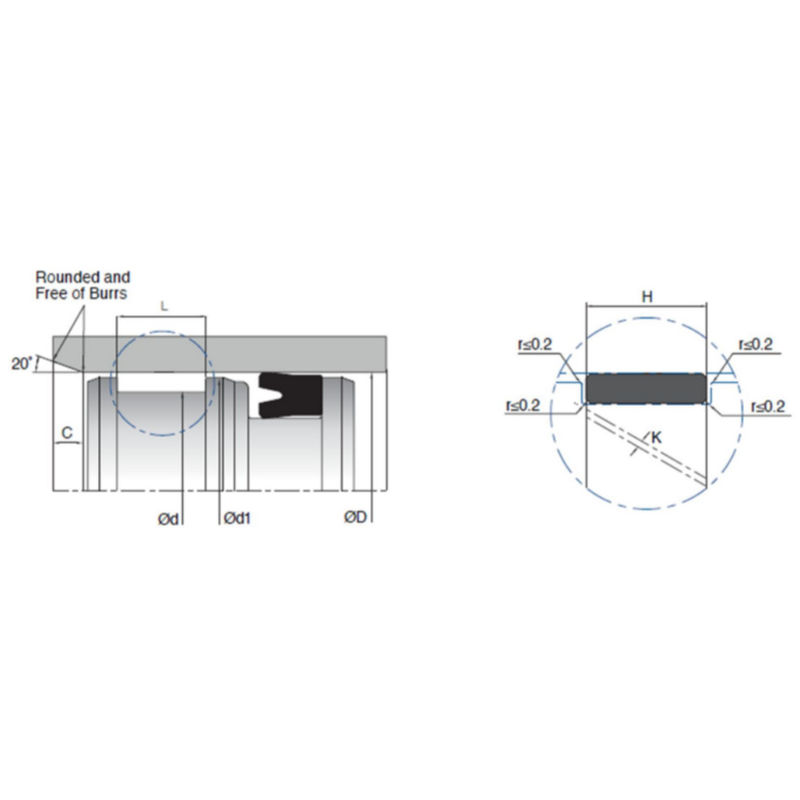

| D (H8) | d (h8) | d1 (h9) | L (+0.2/-0) | اچ | مواد | |
| KL53-020 | 20 | 16 | 19.6 | 9.6 | 9.4 | POM |
| KL53-020/1 | 20 | 17 | 19.6 | 3.2 | 3 | POM |
| KL53-022 | 22 | 18 | 21.6 | 9.6 | 9.4 | POM |
| KL53-025 | 25 | 21 | 24.6 | 9.7 | 9.5 | POM |
| KL53-025/1 | 25 | 21 | 24.6 | 8.2 | 8 | POM |
| KL53-025/2 | 25 | 22 | 24.6 | 4.2 | 4 | POM |
| KL53-025/3 | 25 | 21.9 | 24.6 | 4 | 3.8 | POM |
| KL53-025/4 | 25 | 22 | 24.6 | 5.8 | 5.6 | POM |
| KL53-030 | 30 | 26 | 29.6 | 9.7 | 9.5 | POM |
| KL53-030/1 | 30 | 25 | 29.5 | 5.6 | 5.4 | POM |
| KL53-030/2 | 30 | 27 | 29.6 | 10 | 9.8 | POM |
| KL53-030/3 | 30 | 27 | 29.6 | 5 | 4.8 | POM |
| KL53-030/4 | 30 | 25 | 29.5 | 15.2 | 15 | POM |
| KL53-032 | 32 | 28 | 31.6 | 9.7 | 9.5 | POM |
| KL53-032/1 | 32 | 26 | 31.4 | 9.9 | 9.7 | POM |
| KL53-032/2 | 32 | 28.9 | 31.6 | 4 | 3.8 | POM |
| KL53-032/3 | 32 | 27 | 31.5 | 5.6 | 5.4 | POM |
| KL53-033 | 33 | 28 | 32.5 | 5.7 | 5.5 | POM |
| KL53-033/1 | 33 | 28 | 32.5 | 9.7 | 9.5 | POM |
| KL53-034 | 34 | 28 | 33.4 | 9.7 | 9.5 | POM |
| KL53-035 | 35 | 30 | 34.5 | 15.2 | 15 | POM |
| KL53-035/1 | 35 | 31 | 34.6 | 9.7 | 9.5 | POM |
| KL53-035/2 | 35 | 29 | 34.4 | 9.7 | 9.5 | POM |
| KL53-035/3 | 35 | 29 | 34.4 | 10 | 9.8 | POM |
| KL53-035/4 | 35.1 | 32 | 34.7 | 4 | 3.8 | POM |
| KL53-035/5 | 35 | 30 | 34.5 | 9.7 | 9.5 | POM |
| KL53-035/6 | 35 | 30 | 34.5 | 5.6 | 5.4 | POM |
| KL53-035/7 | 35 | 30 | 34.5 | 8.2 | 8 | POM |
| KL53-036 | 36 | 33 | 35.6 | 4 | 3.8 | POM |
| KL53-037 | 37 | 32 | 36.5 | 5.7 | 5.5 | POM |
| KL53-040 | 40 | 35 | 39.5 | 15.2 | 15 | POM |
| KL53-040/1 | 40 | 36 | 39.6 | 9.7 | 9.5 | POM |
| KL53-040/2 | 40 | 34 | 39.4 | 9.9 | 9.7 | POM |
| KL53-040/3 | 40 | 35 | 39.5 | 5.6 | 5.4 | POM |
| KL53-040/4 | 40 | 35 | 39.5 | 6.3 | 6.1 | POM |
| KL53-040/5 | 40 | 35 | 39.5 | 9.7 | 9.5 | POM |
| KL53-040/6 | 40 | 34 | 39.4 | 9.7 | 9.5 | POM |
| KL53-040/7 | 40 | 36 | 39.6 | 6.4 | 6.2 | POM |
| KL53-041 | 41 | 36 | 40.5 | 9.7 | 9.5 | POM |
| KL53-041/1 | 41 | 38 | 40.6 | 21 | 20.8 | POM |
| KL53-041/2 | 41 | 35 | 40.4 | 20 | 19.8 | POM |
| KL53-041/3 | 41 | 36 | 40.5 | 5.6 | 5.4 | POM |
| KL53-045 | 45 | 40 | 44.5 | 15.2 | 15 | POM |
| KL53-045/1 | 45 | 41 | 44.6 | 9.7 | 9.5 | POM |
| KL53-045/2 | 45 | 40 | 44.5 | 9.7 | 9.5 | POM |
| KL53-045/3 | 45 | 41 | 44.6 | 10.2 | 10 | POM |
| KL53-045/4 | 45 | 39 | 44.4 | 10 | 9.8 | POM |
| KL53-045/5 | 45 | 40 | 44.5 | 20.2 | 20 | POM |
| KL53-045/6 | 45 | 40 | 44.5 | 10 | 9.8 | POM |
| KL53-045/7 | 45 | 40 | 44.5 | 5.6 | 5.4 | POM |
| KL53-045/8 | 45 | 40 | 44.5 | 9.8 | 9.6 | POM |
| KL53-045/9 | 45 | 40 | 44.5 | 9.9 | 9.7 | POM |
| KL53-046 | 46 | 41 | 45.5 | 5.6 | 5.4 | POM |
| KL53-046/1 | 46 | 40 | 45.4 | 13 | 12.8 | POM |
| KL53-049 | 49 | 45 | 48.6 | 20 | 19.8 | POM |
| KL53-050 | 50 | 45 | 49.5 | 15.2 | 15 | POM |
| KL53-050/1 | 50 | 44 | 49.4 | 9.7 | 9.5 | POM |
| KL53-050/2 | 50 | 45 | 49.5 | 9.7 | 9.5 | POM |
| KL53-050/3 | 50 | 45 | 49.5 | 5.6 | 5.4 | POM |
| KL53-050/4 | 50 | 46 | 49.6 | 15.2 | 15 | POM |
| KL53-050/5 | 50 | 43.5 | 49.4 | 5.8 | 5.6 | POM |
| KL53-050.8 | 50.8 | 44.45 | 50.2 | 19.25 | 19.05 | POM |
| KL53-050.8/1 | 50.8 | 44.45 | 50.2 | 6.55 | 6.35 | POM |
| KL53-053 | 53 | 47 | 52.4 | 13 | 12.8 | POM |
| KL53-055 | 55 | 50 | 54.5 | 15.2 | 15 | POM |
| KL53-055/1 | 55 | 49 | 54.4 | 12.7 | 12.5 | POM |
| KL53-055/2 | 55 | 50 | 54.5 | 8.2 | 8 | POM |
| KL53-055/3 | 55 | 50 | 54.5 | 20.2 | 20 | POM |
| KL53-055/4 | 55 | 50 | 54.5 | 9.7 | 9.5 | POM |
| KL53-055/5 | 55 | 49 | 54.4 | 9.5 | 9.3 | POM |
| KL53-055/6 | 55 | 49 | 54.4 | 9.9 | 9.7 | POM |
| KL53-055/7 | 55 | 51 | 54.6 | 10 | 9.8 | POM |
| KL53-055/8 | 55 | 50 | 54.5 | 5.6 | 5.4 | POM |
| KL53-055/9 | 55 | 50 | 54.5 | 9.9 | 9.7 | POM |
| KL53-057.15 | 57.15 | 50.8 | 56.55 | 19.25 | 19.05 | POM |
| KL53-060 | 60 | 55 | 59.5 | 15.2 | 15 | POM |
| KL53-060/1 | 60 | 54 | 59.4 | 12.7 | 12.5 | POM |
| KL53-060/2 | 60 | 54 | 59.4 | 9.5 | 9.3 | POM |
| KL53-060/3 | 60 | 55 | 59.5 | 9.7 | 9.5 | POM |
| KL53-060/4 | 60 | 56 | 59.6 | 9.8 | 9.6 | POM |
| KL53-060/5 | 60 | 56 | 59.6 | 10.2 | 10 | POM |
| KL53-060/6 | 60 | 54 | 59.4 | 5.6 | 5.4 | POM |
| KL53-060/7 | 60 | 55 | 59.5 | 5.8 | 5.6 | POM |
| KL53-060/8 | 60 | 55 | 59.5 | 9.9 | 9.7 | POM |
| KL53-060/9 | 60 | 56 | 59.6 | 8.1 | 7.9 | POM |
| KL53-060/10 | 60 | 55 | 59.5 | 7.2 | 7 | POM |
| KL53-060/11 | 60 | 55 | 59.5 | 13.2 | 13 | POM |
| KL53-060/12 | 60 | 55 | 59.5 | 20.2 | 20 | POM |
| KL53-062 | 62 | 56 | 61.4 | 20.2 | 20 | POM |
| KL53-062/1 | 62 | 56 | 61.4 | 9.7 | 9.5 | POM |
| KL53-063 | 63 | 57 | 62.4 | 12.7 | 12.5 | POM |
| KL53-063/1 | 63 | 58 | 62.5 | 10 | 9.8 | POM |
| KL53-063/2 | 63 | 58 | 62.5 | 9.7 | 9.5 | POM |
| KL53-063/3 | 63 | 59 | 62.6 | 9.7 | 9.5 | POM |
| KL53-063/4 | 63 | 57 | 62.4 | 10 | 9.8 | POM |
| KL53-063/5 | 63 | 58 | 62.5 | 5.6 | 5.4 | POM |
| KL53-063/6 | 63 | 58 | 62.5 | 6.3 | 6.1 | POM |
| KL53-063/7 | 63 | 57 | 62.4 | 9.7 | 9.5 | POM |
| KL53-064 | 64 | 60 | 63.6 | 19.5 | 19.3 | POM |
| KL53-064/1 | 64 | 60 | 63.6 | 10.2 | 10 | POM |
| KL53-065 | 65 | 60 | 64.5 | 15.2 | 15 | POM |
| KL53-065/1 | 65 | 59 | 64.4 | 12.7 | 12.5 | POM |
| KL53-065/2 | 65 | 60 | 64.5 | 9.7 | 9.5 | POM |
| KL53-065/3 | 65 | 62 | 64.6 | 20 | 19.8 | POM |
| KL53-065/4 | 65 | 60 | 64.5 | 5.5 | 5.3 | POM |
| KL53-065/5 | 65 | 60 | 64.5 | 8.2 | 8 | POM |
| KL53-065/7 | 65 | 60 | 64.5 | 9.9 | 9.7 | POM |
| KL53-065/8 | 65 | 60 | 64.5 | 5.7 | 5.5 | POM |
| KL53-065/9 | 65 | 60 | 64.5 | 9.5 | 9.3 | POM |
| KL53-066 | 66 | 60 | 65.4 | 9.7 | 9.5 | POM |
| KL53-068 | 68 | 63 | 67.5 | 9.7 | 9.5 | POM |
| KL53-069 | 69 | 63 | 68.4 | 30.2 | 30 | POM |
| KL53-070 | 70 | 65 | 69.5 | 15.2 | 15 | POM |
| KL53-070/1 | 70 | 64 | 69.4 | 12.7 | 12.5 | POM |
| KL53-070/2 | 70 | 65 | 69.5 | 9.7 | 9.5 | POM |
| KL53-070/3 | 70 | 66 | 69.6 | 10 | 9.8 | POM |
| KL53-070/4 | 70 | 65 | 69.5 | 5.6 | 5.4 | POM |
| KL53-070/5 | 70 | 65 | 69.5 | 7 | 6.8 | POM |
| KL53-070/7 | 70 | 64 | 69.4 | 10.2 | 10 | POM |
| KL53-070/8 | 70 | 65 | 69.5 | 7.2 | 7 | POM |
| KL53-070/9 | 70 | 65 | 69.5 | 9.9 | 9.7 | POM |
| KL53-072 | 72 | 67 | 71.5 | 5.6 | 5.4 | POM |
| KL53-075 | 75 | 70 | 74.5 | 15.2 | 15 | POM |
| KL53-075/1 | 75 | 69 | 74.4 | 12.7 | 12.5 | POM |
| KL53-075/2 | 75 | 70 | 74.5 | 9.7 | 9.5 | POM |
| KL53-075/3 | 75 | 70 | 74.5 | 5.6 | 5.4 | POM |
| KL53-075/4 | 75 | 70 | 74.5 | 30.2 | 30 | POM |
| KL53-075/5 | 75 | 70 | 74.5 | 9.9 | 9.7 | POM |
| KL53-075/6 | 75 | 70 | 74.5 | 20.2 | 20 | POM |
| KL53-076.20 | 76.2 | 69.85 | 75.6 | 19.25 | 19.05 | POM |
| KL53-080 | 80 | 75 | 79.5 | 15.2 | 15 | POM |
| KL53-080/1 | 80 | 74 | 79.4 | 12.7 | 12.5 | POM |
| KL53-080/2 | 80 | 75 | 79.5 | 8.2 | 8 | POM |
| KL53-080/3 | 80 | 75 | 79.5 | 9.7 | 9.5 | POM |
| KL53-080/4 | 80 | 76 | 79.6 | 15.2 | 15 | POM |
| KL53-080/5 | 80 | 72 | 79.4 | 6.2 | 6 | POM |
| KL53-080/6 | 80 | 75 | 79.5 | 5.6 | 5.4 | POM |
| KL53-080/7 | 80 | 74 | 79.4 | 12.2 | 12 | POM |
| KL53-080/8 | 80 | 75 | 79.5 | 9.9 | 9.7 | POM |
| KL53-080/9 | 80 | 75 | 79.5 | 25.2 | 25 | POM |
| KL53-080/10 | 80 | 74 | 79.4 | 9.9 | 9.7 | POM |
| KL53-080/11 | 80 | 75 | 79.5 | 15 | 14.8 | POM |
| KL53-080/13 | 80 | 75 | 79.5 | 20 | 19.8 | POM |
| KL53-080/15 | 80 | 76 | 79.6 | 9.7 | 9.5 | POM |
| KL53-083 | 83 | 75 | 82.4 | 9.7 | 9.5 | POM |
| KL53-085 | 85 | 80 | 84.5 | 15.2 | 15 | POM |
| KL53-085/1 | 85 | 79 | 84.4 | 12.7 | 12.5 | POM |
| KL53-085/2 | 85 | 80 | 84.5 | 9.7 | 9.5 | POM |
| KL53-085/3 | 85 | 80 | 84.5 | 20 | 19.8 | POM |
| KL53-085/4 | 85 | 80 | 84.5 | 5.6 | 5.4 | POM |
| KL53-085/5 | 85 | 80 | 84.5 | 9.9 | 9.7 | POM |
| KL53-085/6 | 85 | 77 | 84.4 | 19.9 | 19.7 | POM |
| KL53-086 | 86 | 80 | 85.4 | 30.2 | 30 | POM |
| KL53-090 | 90 | 85 | 89.5 | 15.2 | 15 | POM |
| KL53-090/1 | 90 | 84 | 89.4 | 12.7 | 12.5 | POM |
| KL53-090/2 | 90 | 85 | 89.5 | 5.7 | 5.5 | POM |
| KL53-090/3 | 90 | 85 | 89.5 | 9.9 | 9.7 | POM |
| KL53-090/4 | 90 | 85 | 89.5 | 9.7 | 9.5 | POM |
| KL53-090/5 | 90 | 84 | 89.4 | 25 | 24.8 | POM |
| KL53-090/6 | 90 | 85 | 89.5 | 15 | 14.8 | POM |
| KL53-090/7 | 90 | 84 | 89.4 | 15.2 | 15 | POM |
| KL53-090/8 | 90 | 84 | 89.4 | 19.7 | 19.5 | POM |
| KL53-094 | 94 | 90 | 93.6 | 15.2 | 15 | POM |
| KL53-095 | 95 | 90 | 94.5 | 15.2 | 15 | POM |
| KL53-095/1 | 95 | 89 | 94.4 | 12.7 | 12.5 | POM |
| KL53-095/2 | 95 | 90 | 94.5 | 9.7 | 9.5 | POM |
| KL53-095/3 | 95 | 90 | 94.5 | 9.9 | 9.7 | POM |
| KL53-095/4 | 95 | 90 | 94.5 | 9.5 | 9.3 | POM |
| KL53-096/2 | 96 | 90 | 95.4 | 30.2 | 30 | POM |
| KL53-096/3 | 95 | 90 | 94.5 | 12.8 | 12.6 | POM |
| KL53-100 | 100 | 95 | 99.5 | 15.2 | 15 | POM |
| KL53-100/1 | 100 | 94 | 99.4 | 12.7 | 12.5 | POM |
| KL53-100/2 | 100 | 95 | 99.5 | 5.6 | 5.4 | POM |
| KL53-100/3 | 100 | 96 | 99.6 | 10.2 | 10 | POM |
| KL53-100/4 | 100 | 94 | 99.4 | 13 | 12.8 | POM |
| KL53-100/5 | 100 | 95 | 99.5 | 9.7 | 9.5 | POM |
| KL53-100/6 | 100 | 95 | 99.5 | 10.2 | 10 | POM |
| KL53-100/7 | 100 | 95 | 99.5 | 15 | 14.8 | POM |
| KL53-100/9 | 100 | 94 | 99.4 | 15 | 14.8 | POM |
| KL53-100/10 | 100 | 95 | 99.5 | 9.5 | 9.3 | POM |
| KL53-100/11 | 100 | 94 | 99.4 | 25 | 24.8 | POM |
| KL53-100/12 | 100 | 94 | 99.4 | 15.2 | 15 | POM |
| KL53-103 | 103 | 95 | 102.4 | 9.7 | 9.5 | POM |
| KL53-104 | 104 | 100 | 103.6 | 15.2 | 15 | POM |
| KL53-105 | 105 | 100 | 104.5 | 15.2 | 15 | POM |
| KL53-105/1 | 105 | 101 | 104.6 | 15.2 | 15 | POM |
| KL53-105/2 | 105 | 100 | 104.5 | 9.9 | 9.7 | POM |
| KL53-105/3 | 105 | 100 | 104.5 | 15 | 14.8 | POM |
| KL53-105/4 | 105 | 100 | 104.5 | 9.5 | 9.3 | POM |
| KL53-105/5 | 105 | 99 | 104.4 | 15 | 14.8 | POM |
| KL53-110 | 110 | 104 | 109.4 | 12.7 | 12.5 | POM |
| KL53-110/1 | 110 | 105 | 109.5 | 9.7 | 9.5 | POM |
| KL53-110/2 | 110 | 106 | 109.6 | 14.9 | 14.7 | POM |
| KL53-110/3 | 110 | 104 | 109.4 | 10.2 | 10 | POM |
| KL53-110/6 | 110 | 105 | 109.5 | 15 | 14.8 | POM |
| KL53-110/8 | 110 | 105 | 109.5 | 9.9 | 9.7 | POM |
| KL53-110/9 | 110 | 104 | 109.4 | 15 | 14.8 | POM |
| KL53-110/10 | 110 | 105 | 109.5 | 9.5 | 9.3 | POM |
| KL53-110/11 | 110 | 104 | 109.4 | 15.2 | 15 | POM |
| KL53-110/12 | 110 | 104 | 109.4 | 24.7 | 24.5 | POM |
| KL53-115 | 115 | 109 | 114.4 | 12.7 | 12.5 | POM |
| KL53-115/1 | 115 | 110 | 114.5 | 9.7 | 9.5 | POM |
| KL53-115/2 | 115 | 105 | 114.4 | 17 | 16.8 | POM |
| KL53-115/4 | 115 | 110 | 114.5 | 20.2 | 20 | POM |
| KL53-115/5 | 115 | 110 | 114.5 | 9.5 | 9.3 | POM |
| KL53-115/6 | 115 | 110 | 114.5 | 15 | 14.8 | POM |
| KL53-115/7 | 115 | 109 | 114.4 | 19.2 | 19 | POM |
| KL53-120 | 120 | 114 | 119.4 | 12.7 | 12.5 | POM |
| KL53-120/1 | 120 | 115 | 119.5 | 15.2 | 15 | POM |
| KL53-120/2 | 120 | 115 | 119.5 | 9.7 | 9.5 | POM |
| KL53-120/3 | 120 | 115 | 119.5 | 15 | 14.8 | POM |
| KL53-120/4 | 120 | 114 | 119.4 | 15 | 14.8 | POM |
| KL53-120/5 | 120 | 115 | 119.5 | 9.5 | 9.3 | POM |
| KL53-125 | 125 | 120 | 124.5 | 15.2 | 15 | POM |
| KL53-125/1 | 125 | 119 | 124.4 | 12.7 | 12.5 | POM |
| KL53-125/2 | 125 | 120 | 124.5 | 9.7 | 9.5 | POM |
| KL53-125/4 | 125 | 119 | 124.4 | 15.2 | 15 | POM |
| KL53-125/6 | 125 | 120 | 124.5 | 9.9 | 9.7 | POM |
| KL53-125/7 | 125 | 119 | 124.4 | 15 | 14.8 | POM |
| KL53-125/8 | 125 | 121 | 124.6 | 10 | 9.8 | POM |
| KL53-125/9 | 125 | 120 | 124.5 | 9.5 | 9.3 | POM |
| KL53-125/10 | 125 | 119 | 124.4 | 20.2 | 20 | POM |
| KL53-130 | 130 | 124 | 129.4 | 12.7 | 12.5 | POM |
| KL53-130/1 | 130 | 125 | 129.5 | 15.2 | 15 | POM |
| KL53-130/2 | 130 | 125 | 129.5 | 7.2 | 7 | POM |
| KL53-130/3 | 130 | 125 | 129.5 | 15 | 14.8 | POM |
| KL53-130/5 | 130 | 123 | 129.4 | 15 | 14.8 | POM |
| KL53-130/4 | 130 | 125 | 129.5 | 9.9 | 9.7 | POM |
| KL53-135 | 135 | 130 | 134.5 | 15.2 | 15 | POM |
| KL53-135/1 | 135 | 129 | 134.4 | 12.8 | 12.6 | POM |
| KL53-135/2 | 135 | 130 | 134.5 | 12.5 | 12.3 | POM |
| KL53-135/3 | 135 | 128 | 134.4 | 25 | 24.8 | POM |
| KL53-135/4 | 135 | 129 | 134.4 | 19.2 | 19 | POM |
| KL53-139 | 139.7 | 133.35 | 139.1 | 9.72 | 9.52 | POM |
| KL53-140 | 140 | 134 | 139.4 | 12.7 | 12.5 | POM |
| KL53-140/1 | 140 | 135 | 139.5 | 9.7 | 9.5 | POM |
| KL53-140/2 | 140 | 135 | 139.5 | 15.2 | 15 | POM |
| KL53-140/3 | 140 | 133 | 139.4 | 15.2 | 15 | POM |
| KL53-140/4 | 140 | 133 | 139.4 | 20 | 19.8 | POM |
| KL53-140/5 | 140 | 133 | 139.4 | 14.9 | 14.7 | POM |
| KL53-140/6 | 140 | 135 | 139.5 | 9.5 | 9.3 | POM |
| KL53-140/7 | 140 | 134 | 139.4 | 20.2 | 20 | POM |
| KL53-140/8 | 140 | 135 | 139.5 | 15 | 14.8 | POM |
| KL53-145 | 145 | 140 | 144.5 | 15.2 | 15 | POM |
| KL53-145/1 | 145 | 140 | 144.5 | 9.9 | 9.7 | POM |
| KL53-145/2 | 145 | 140 | 144.5 | 25 | 24.8 | POM |
| KL53-150 | 150 | 144 | 149.4 | 12.7 | 12.5 | POM |
| KL53-150/1 | 150 | 144 | 149.4 | 19.2 | 19 | POM |
| KL53-150/2 | 150 | 145 | 149.5 | 9.7 | 9.5 | POM |
| KL53-150/3 | 150 | 146 | 149.6 | 10.2 | 10 | POM |
| KL53-150/4 | 150 | 143 | 149.4 | 20 | 19.8 | POM |
| KL53-150/5 | 150 | 145 | 149.5 | 9.5 | 9.3 | POM |
| KL53-150/6 | 150 | 145 | 149.5 | 15.2 | 15 | POM |
| KL53-154 | 154 | 150 | 153.6 | 15.2 | 15 | POM |
| KL53-156 | 156 | 150 | 155.4 | 19.2 | 19 | POM |
| KL53-160 | 160 | 155 | 159.5 | 15.2 | 15 | POM |
| KL53-160/1 | 160 | 154 | 159.4 | 19.2 | 19 | POM |
| KL53-160/2 | 160 | 155 | 159.5 | 9.7 | 9.5 | POM |
| KL53-160/4 | 160 | 152 | 159.4 | 15.2 | 15 | POM |
| KL53-160/5 | 160 | 153 | 159.4 | 19.7 | 19.5 | POM |
| KL53-165 | 165 | 160 | 164.5 | 15.2 | 15 | POM |
| KL53-165/1 | 165 | 159 | 164.4 | 29.7 | 29.5 | POM |
| KL53-166 | 166 | 160 | 165.4 | 12.7 | 12.5 | POM |
| KL53-170 | 170 | 165 | 169.5 | 15.2 | 15 | POM |
| KL53-170/1 | 170 | 162 | 169.4 | 19.7 | 19.5 | POM |
| KL53-175 | 175 | 170 | 174.5 | 15.2 | 15 | POM |
| KL53-180 | 180 | 174 | 179.4 | 19.2 | 19 | POM |
| KL53-180/1 | 180 | 175 | 179.5 | 9.7 | 9.5 | POM |
| KL53-180/2 | 180 | 172 | 179.4 | 15 | 14.8 | POM |
| KL53-185 | 185 | 180 | 184.5 | 15.2 | 15 | POM |
| KL53-190 | 190 | 185 | 189.5 | 15.2 | 15 | POM |
| KL53-190/1 | 190 | 182 | 189.4 | 24.7 | 24.5 | POM |
| KL53-195 | 195 | 190 | 194.5 | 15.2 | 15 | POM |
| KL53-200 | 200 | 194 | 199.4 | 19.2 | 19 | POM |
| KL53-200/1 | 200 | 195 | 199.5 | 15.2 | 15 | POM |
| KL53-200/2 | 200 | 192 | 199.4 | 15 | 14.8 | POM |
| KL53-210 | 210 | 205 | 209.5 | 9.9 | 9.7 | POM |
| KL53-220 | 220 | 214 | 219.4 | 19.2 | 19 | POM |
| KL53-225 | 225 | 219 | 224.4 | 19.2 | 19 | POM |
| KL53-225/1 | 225 | 220 | 224.5 | 25 | 24.8 | POM |
| KL53-226 | 226 | 220 | 225.4 | 19.2 | 19 | POM |
| KL53-250 | 250 | 244 | 249.4 | 19.2 | 19 | POM |
Send your inquiry directly to us
