محل منبع:
چین
نام تجاری:
Cologne
گواهی:
ISO9001 / IRIS
شماره مدل:
KL54
Contact Us
• ماشین آلات کشاورزی
• جرثقیل
• بطری های سبک و متوسط
• بطری های استاندارد صنعتی

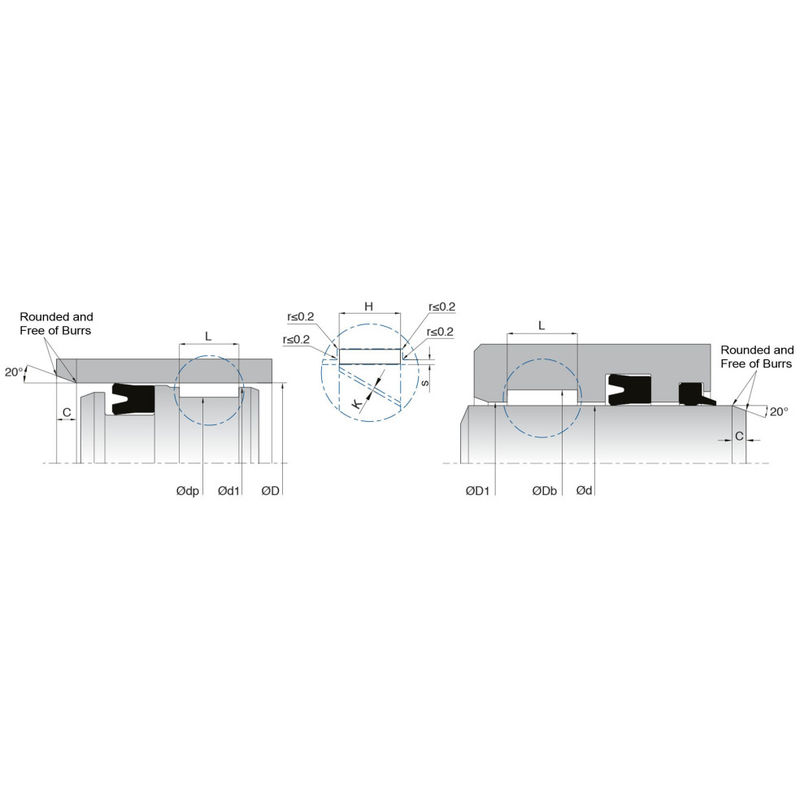

| d ((f8) dp ((h8) | Db ((H8) D ((H9) | L (+0.2/-0) | H | d1 (h9) | D1 (H9) | مواد | |
| KL54-022 | 22 | 26 | 10.4 | 10 | 25.6 | 22.4 | POM |
| KL54-022/1 | 22 | 26 | 5.4 | 5 | 25.6 | 22.4 | POM |
| KL54-025 | 25 | 29 | 6.4 | 6 | 28.6 | 25.4 | POM |
| KL54-025/1 | 25 | 29 | 10.4 | 10 | 28.6 | 25.4 | POM |
| KL54-025/2 | 25 | 30 | 5.7 | 5.3 | 29.5 | 25.5 | POM |
| KL54-028 | 28 | 32 | 6.4 | 6 | 31.6 | 28.4 | POM |
| KL54-028/1 | 28 | 32 | 10.4 | 10 | 31.6 | 28.4 | POM |
| KL54-030 | 30 | 35 | 15.4 | 15 | 34.5 | 30.5 | POM |
| KL54-030/1 | 30 | 35 | 5.7 | 5.3 | 34.5 | 30.5 | POM |
| KL54-030/2 | 30 | 36 | 9.9 | 9.5 | 35.4 | 30.6 | POM |
| KL54-035 | 35 | 40 | 15.4 | 15 | 39.5 | 35.5 | POM |
| KL54-036 | 36 | 40 | 6.4 | 6 | 39.6 | 36.4 | POM |
| KL54-036/1 | 36 | 40 | 15.4 | 15 | 39.6 | 36.4 | POM |
| KL54-036/2 | 36 | 40 | 10.4 | 10 | 39.6 | 36.4 | POM |
| KL54-040 | 40 | 45 | 15.4 | 15 | 44.5 | 40.5 | POM |
| KL54-040/1 | 40 | 45 | 8.4 | 8 | 44.5 | 40.5 | POM |
| KL54-040/2 | 40 | 45 | 20.4 | 20 | 44.5 | 40.5 | POM |
| KL54-045 | 45 | 50 | 15.4 | 15 | 49.5 | 45.5 | POM |
| KL54-045/1 | 45 | 51 | 8.4 | 8 | 50.4 | 45.6 | POM |
| KL54-045/2 | 45 | 51 | 20.4 | 20 | 50.4 | 45.6 | POM |
| KL54-046 | 46 | 50 | 10.4 | 10 | 49.6 | 46.4 | POM |
| KL54-050/1 | 50 | 56 | 8.4 | 8 | 55.4 | 50.6 | POM |
| KL54-050/2 | 50 | 56 | 20.4 | 20 | 55.4 | 50.6 | POM |
| KL54-050/3 | 50 | 56 | 12.9 | 12.5 | 55.4 | 50.6 | POM |
| KL54-055/1 | 55 | 61 | 8.4 | 8 | 60.4 | 55.6 | POM |
| KL54-055/2 | 55 | 61 | 20.4 | 20 | 60.4 | 55.6 | POM |
| KL54-056 | 56 | 62 | 8.4 | 8 | 61.4 | 56.6 | POM |
| KL54-056/1 | 56 | 62 | 20.4 | 20 | 61.4 | 56.6 | POM |
| KL54-060 | 60 | 65 | 15.4 | 15 | 64.5 | 60.5 | POM |
| KL54-060/1 | 60 | 66 | 8.4 | 8 | 65.4 | 60.6 | POM |
| KL54-060/2 | 60 | 66 | 20.4 | 20 | 65.4 | 60.6 | POM |
| KL54-065 | 65 | 70 | 15.4 | 15 | 69.5 | 65.5 | POM |
| KL54-080 | 80 | 85 | 15.4 | 15 | 84.5 | 80.5 | POM |
