محل منبع:
چین
نام تجاری:
KELONG
گواهی:
ISO9001 / IRIS
شماره مدل:
KL102
Contact Us
KL102 پاک کننده ها موادی هستند که از نفوذ ذرات خارجی از محیط بیرونی در کاربردهای هیدرولیکی جلوگیری می کنند.

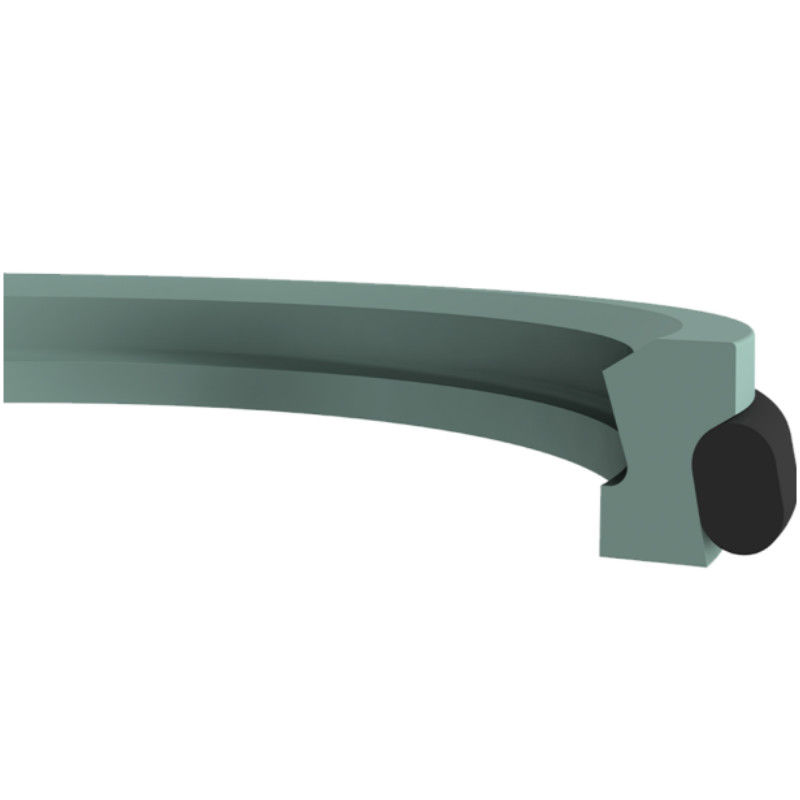

پاک کننده های KL102 مواردی هستند که مانع از نفوذ ذرات خارجی از محیط بیرونی به کاربردهای هیدرولیکی می شوند و شامل حلقه کنده کننده PTFE و حلقه O استالومر هستند.آنها عمر طولانی با اصطکاک کم در سیستم های سریع حرکت دارند..

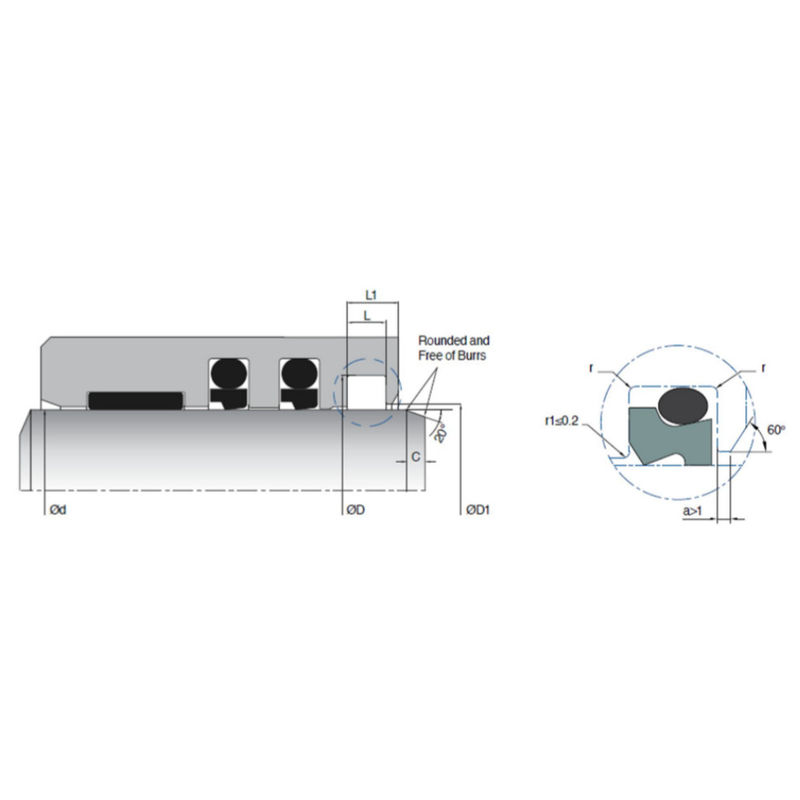

| d (f8) | D (H9) | D1 (H11) | L (+0.2/-0) | L1 | r | حلقۀ O | مواد | |
| KL102-020 | 20 | 27.6 | 21.5 | 4.2 | 7.2 | 0.8 | 23.47X262 | PTFE |
| KL102-022 | 22 | 29.6 | 23.5 | 4.2 | 7.2 | 0.8 | 25.07X262 | PTFE |
| KL102-025 | 25 | 32.6 | 26.5 | 4.2 | 7.2 | 0.8 | 28.25X262 | PTFE |
| KL102-028 | 28 | 35.6 | 29.5 | 4.2 | 7.2 | 0.8 | 31.42X262 | PTFE |
| KL102-030 | 30 | 37.6 | 31.5 | 4.2 | 7.2 | 0.8 | 33.00X262 | PTFE |
| KL102-032 | 32 | 39.6 | 33.5 | 4.2 | 7.2 | 0.8 | 34.59X262 | PTFE |
| KL102-036/1 | 36 | 43.6 | 37.5 | 4.2 | 7.2 | 0.8 | 39.34X262 | PTFE |
| KL102-040 | 40 | 48.8 | 41.5 | 6.3 | 9.3 | 0.8 | 44.12X262 | PTFE |
| KL102-042 | 42 | 49.6 | 43.5 | 4.2 | 7.2 | 0.8 | 45.69X262 | PTFE |
| KL102-045 | 45 | 53.8 | 46.5 | 6.3 | 9.3 | 0.8 | 48.90X262 | PTFE |
| KL102-050 | 50 | 58.8 | 51.5 | 6.3 | 9.3 | 0.8 | 55.25X262 | PTFE |
| KL102-055 | 55 | 63.8 | 56.5 | 6.3 | 9.3 | 0.8 | 60.00X262 | PTFE |
| KL102-056 | 56 | 64.8 | 57.5 | 6.3 | 9.3 | 0.8 | 60.00X262 | PTFE |
| KL102-060 | 60 | 68.8 | 61.5 | 6.3 | 9.3 | 0.8 | 64.77X262 | PTFE |
| KL102-063 | 63 | 71.8 | 64.5 | 6.3 | 9.3 | 0.8 | 67.95X262 | PTFE |
| KL102-065 | 65 | 73.8 | 66.5 | 6.3 | 9.3 | 0.8 | 69.52X262 | PTFE |
| KL102-070 | 70 | 82.2 | 72 | 8.1 | 12.1 | 1 | 75.80X353 | PTFE |
| KL102-075 | 75 | 87.2 | 77 | 8.1 | 12.1 | 1 | 82.14X353 | PTFE |
| KL102-080 | 80 | 92.2 | 82 | 8.1 | 12.1 | 1 | 85.32X353 | PTFE |
| KL102-085 | 85 | 97.2 | 87 | 8.1 | 12.1 | 1 | 91.67X353 | PTFE |
| KL102-090 | 90 | 102.2 | 92 | 8.1 | 12.1 | 1 | 94.84X353 | PTFE |
| KL102-090/1 | 90 | 98.8 | 92 | 6.3 | 9.3 | 0.8 | 94.92x2.62 | PTFE |
| KL102-100 | 100 | 112.2 | 102 | 8.1 | 12.1 | 1 | 107.54X353 | PTFE |
| KL102-105 | 105 | 117.2 | 107 | 8.1 | 12.1 | 1 | 110.72X353 | PTFE |
| KL102-110 | 110 | 122.2 | 112 | 8.1 | 12.1 | 1 | 117.07X353 | PTFE |
| KL102-110/1 | 110 | 118.8 | 112 | 6.3 | 9.3 | 0.8 | 113.98X262 | PTFE |
| KL102-115 | 115 | 127.2 | 117 | 8.1 | 12.1 | 1 | 120.25X353 | PTFE |
| KL102-120 | 120 | 132.2 | 122 | 8.1 | 12.1 | 1 | 126.60X353 | PTFE |
| KL102-125 | 125 | 137.2 | 127 | 8.1 | 12.1 | 1 | 132.94X353 | PTFE |
| KL102-130 | 130 | 142.2 | 132 | 8.1 | 12.1 | 1 | 136.12X353 | PTFE |
| KL102-135 | 135 | 147.2 | 137 | 8.1 | 12.1 | 1 | 142.47X353 | PTFE |
| KL102-140 | 140 | 156 | 142.5 | 9.5 | 14.5 | 1.5 | 146.05X353 | PTFE |
| KL102-150 | 150 | 166 | 152.5 | 9.5 | 14.5 | 1.5 | 151.77X533 | PTFE |
| KL102-153 | 153 | 169 | 155.5 | 9.5 | 14.5 | 1.5 | 161.30X533 | PTFE |
| KL102-160 | 160 | 176 | 162.5 | 9.5 | 14.5 | 1.5 | 170.82X533 | PTFE |
| KL102-165 | 165 | 181 | 167.5 | 9.5 | 14.5 | 1.5 | 170.82X533 | PTFE |
| KL102-170 | 170 | 186 | 172.5 | 9.5 | 14.5 | 1.5 | 177.17X533 | PTFE |
| KL102-175 | 175 | 191 | 177.5 | 9.5 | 14.5 | 1.5 | 183.52X533 | PTFE |
| KL102-180 | 180 | 196 | 182.5 | 9.5 | 14.5 | 1.5 | 189.87X533 | PTFE |
| KL102-190 | 190 | 206 | 192.5 | 9.5 | 14.5 | 1.5 | 196.22X533 | PTFE |
| KL102-200 | 200 | 216 | 202.5 | 9.5 | 14.5 | 1.5 | 208.92X533 | PTFE |
| KL102-212 | 212 | 228 | 214.5 | 9.5 | 14.5 | 1.5 | 221.62x533 | PTFE |
| KL102-220 | 220 | 236 | 222.5 | 9.5 | 14.5 | 1.5 | 227.97X533 | PTFE |
| KL102-240 | 240 | 256 | 242.5 | 9.5 | 14.5 | 1.5 | 247.02X533 | PTFE |
| KL102-250 | 250 | 266 | 252.5 | 9.5 | 14.5 | 1.5 | 253.57X533 | PTFE |
| KL102-260 | 260 | 276 | 262.5 | 9.5 | 14.5 | 1.5 | 266.07X533 | PTFE |
| KL102-270 | 270 | 286 | 272.5 | 9.5 | 14.5 | 1.5 | 278.77X533 | PTFE |
| KL102-280 | 280 | 296 | 282.5 | 9.5 | 14.5 | 1.5 | 291.47X533 | PTFE |
| KL102-300 | 300 | 316 | 302.5 | 9.5 | 14.5 | 1.5 | 304.17X533 | PTFE |
| KL102-320 | 320 | 336 | 322.5 | 9.5 | 14.5 | 1.5 | 329.57X533 | PTFE |
| KL102-330 | 330 | 346 | 332.5 | 9.5 | 14.5 | 1.5 | 335.00X533 | PTFE |
| KL102-350 | 350 | 366 | 352.5 | 9.5 | 14.5 | 1.5 | 354.97x533 | PTFE |
| KL102-360 | 360 | 376 | 362.5 | 9.5 | 14.5 | 1.5 | 367.50X533 | PTFE |
| KL102-380 | 380 | 396 | 382.5 | 9.5 | 14.5 | 1.5 | 380.37X533 | PTFE |
| KL102-400 | 400 | 416 | 402.5 | 9.5 | 14.5 | 1.5 | 405.26X533 | PTFE |
| KL102-405 | 405 | 429 | 407.5 | 14 | 22 | 1.5 | 417.96x699 | PTFE |
| KL102-430 | 430 | 454 | 432.5 | 14 | 22 | 1.5 | 443.36x699 | PTFE |
| KL102-440 | 440 | 464 | 442.5 | 14 | 22 | 1.5 | 456.06X699 | PTFE |
| KL102-460 | 460 | 484 | 462.5 | 14 | 22 | 1.5 | 468.76x699 | PTFE |
| KL102-480 | 480 | 504 | 482.5 | 14 | 22 | 1.5 | 494.16X699 | PTFE |
| KL102-490 | 490 | 514 | 492.5 | 14 | 22 | 1.5 | 506.86x699 | PTFE |
| KL102-500 | 500 | 524 | 502.5 | 14 | 22 | 1.5 | 515.00X699 | PTFE |
| KL102-510 | 510 | 534 | 412.5 | 14 | 22 | 1.5 | 515.00X699 | PTFE |
| KL102-520 | 520 | 544 | 522.5 | 14 | 22 | 1.5 | 532.26x699 | PTFE |
| KL102-530 | 530 | 554 | 532.5 | 14 | 22 | 1.5 | 542X7 | PTFE |
| KL102-540 | 540 | 564 | 542.5 | 14 | 22 | 1.5 | 557.66x699 | PTFE |
| KL102-570 | 570 | 594 | 572.5 | 14 | 22 | 1.5 | 582.86x699 | PTFE |
