محل منبع:
چین
نام تجاری:
Kelong
گواهی:
ISO9001 / IRIS
شماره مدل:
KL30
با ما تماس بگیرید

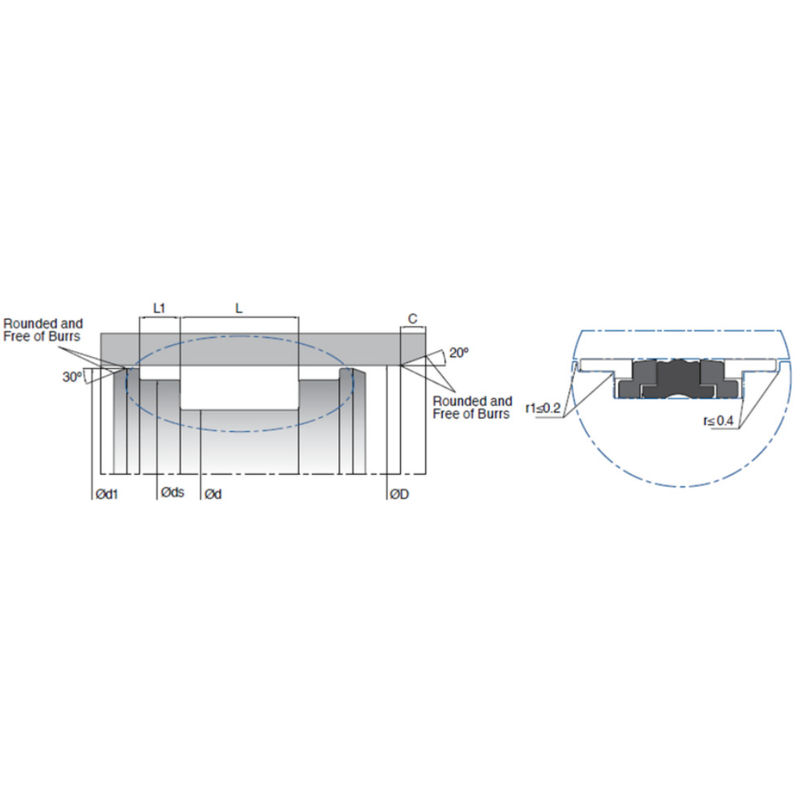

| D (H8) | d (h9) | L (+0.2/-0) | ds (h8) | d1 (±0.1) | L1 (+0.2/-0) | C | مواد | |
| KL30 020-011 | 20 | 11 | 13.5 | 17 | 19 | 2.1 | 4 | NBR |
| KL30 022-013 | 22 | 13 | 13.5 | 19 | 21 | 2.1 | 4 | NBR |
| KL30 025-015 | 25 | 15 | 16.4 | 21.45 | 23.5 | 6.35 | 4 | NBR |
| KL30 025-015/1 | 25 | 15 | 12 | 21 | 23 | 4 | 4 | NBR |
| KL30 025-015/2 | 25 | 15 | 12.5 | 22 | 24 | 4 | 4 | NBR |
| KL30 025-016 | 25 | 16 | 13.5 | 22 | 24 | 2.1 | 4 | NBR |
| KL30 025-017/1 | 25 | 17 | 13.5 | 21 | 24.4 | 3.2 | 4 | NBR |
| KL30 025-017/2 | 25 | 17 | 10 | 22 | 24 | 4 | 4 | NBR |
| KL30 028-019 | 28 | 19 | 13.5 | 25 | 27 | 2.1 | 4 | NBR |
| KL30 030-017 | 30 | 17 | 15.4 | 26.5 | 28.5 | 6.35 | 4 | NBR |
| KL30 030-021 | 30 | 21 | 13.5 | 27 | 29 | 2.1 | 4 | NBR |
| KL30 030-022 | 30 | 22 | 13.5 | 26 | 29.4 | 3.2 | 4 | NBR |
| KL30 032-019 | 32 | 19 | 15.4 | 28.5 | 30.7 | 6.35 | 4 | NBR |
| KL30 032-022 | 32 | 22 | 16.4 | 28.5 | 30.5 | 6.35 | 4 | NBR |
| KL30 032-022/1 | 32 | 22 | 15.5 | 28 | 31 | 2.6 | 4 | NBR |
| KL30 032-022/2 | 32 | 22 | 12.5 | 29 | 31 | 4 | 4 | NBR |
| KL30 032-024 | 32 | 24 | 15.5 | 28 | 31 | 3.1 | 4 | NBR |
| KL30 032-024/1 | 32 | 24 | 10 | 29 | 31 | 4 | 4 | NBR |
| KL30 035-025 | 35 | 25 | 16.4 | 31.4 | 33.5 | 6.35 | 4 | NBR |
| KL30 035-027 | 35 | 27 | 15.5 | 31 | 34.4 | 3.2 | 4 | NBR |
| KL30 040-024 | 40 | 24 | 18.4 | 35.4 | 38.5 | 6.35 | 5 | NBR |
| KL30 040-026 | 40 | 26 | 15.5 | 36 | 39 | 2.6 | 4.5 | NBR |
| KL30 040-030 | 40 | 30 | 16.4 | 35.4 | 38.5 | 6.35 | 4 | NBR |
| KL30 040-030/1 | 40 | 30 | 12.5 | 37 | 39 | 4 | 4 | NBR |
| KL30 040-030/2 | 40 | 30 | 12.4 | 36 | 39 | 4 | 4 | NBR |
| KL30 040-032 | 40 | 32 | 15.5 | 36 | 39.4 | 3.2 | 4 | NBR |
| KL30 040-032/1 | 40 | 32 | 10 | 37 | 39 | 4 | 4 | NBR |
| KL30 042-028 | 42 | 28 | 15.5 | 38 | 41 | 2.6 | 4.5 | NBR |
| KL30 045-029 | 45 | 29 | 18.4 | 40.4 | 43.5 | 6.35 | 5 | NBR |
| KL30 045-031 | 45 | 31 | 15.5 | 41 | 44 | 2.6 | 4.5 | NBR |
| KL30 045-035 | 45 | 35 | 16.4 | 40.4 | 43.5 | 6.35 | 4 | NBR |
| KL30 045-037 | 45 | 37 | 15.5 | 41 | 44.4 | 3.2 | 4 | NBR |
| KL30 050-034 | 50 | 34 | 20.5 | 46 | 49 | 3.1 | 5 | NBR |
| KL30 050-034/1 | 50 | 34 | 18.4 | 45.41 | 48.66 | 6.35 | 5 | NBR |
| KL30 050-035 | 50 | 35 | 20 | 46 | 48.5 | 5 | 5 | NBR |
| KL30 050-038 | 50 | 38 | 20.5 | 46 | 49.4 | 4.2 | 4 | NBR |
| KL30 050-040 | 50 | 40 | 12.5 | 47 | 49 | 4 | 4 | NBR |
| KL30 055-039 | 55 | 39 | 20.5 | 51 | 54 | 3.1 | 5 | NBR |
| KL30 055-039/1 | 55 | 39 | 18.4 | 50.37 | 53.65 | 6.35 | 5 | NBR |
| KL30 055-045 | 55 | 45 | 12.5 | 52 | 54 | 4 | 4 | NBR |
| KL30 056-040 | 56 | 40 | 20.5 | 52 | 55 | 3.1 | 5 | NBR |
| KL30 060-044 | 60 | 44 | 20.5 | 56 | 59 | 3.1 | 5 | NBR |
| KL30 060-044/1 | 60 | 44 | 18.4 | 55.39 | 58.65 | 6.35 | 5 | NBR |
| KL30 060-048 | 60 | 48 | 20.5 | 56 | 58.98 | 4.2 | 4 | NBR |
| KL30 063-047 | 63 | 47 | 20.5 | 59 | 62 | 3.1 | 5 | NBR |
| KL30 063-047/1 | 63 | 47 | 18.4 | 58.39 | 61.63 | 6.35 | 55 | NBR |
| KL30 063-047/2 | 63 | 47 | 19.4 | 58.47 | 61.5 | 6.35 | 5 | NBR |
| KL30 063-048 | 63 | 48 | 20 | 59 | 61.5 | 5 | 5 | NBR |
| KL30 063-051 | 63 | 51 | 20.5 | 59 | 62.4 | 4.2 | 4 | NBR |
| KL30 063-053 | 63 | 53 | 12.5 | 60 | 62 | 4 | 4 | NBR |
| KL30 065-049 | 65 | 49 | 20.5 | 61 | 64 | 3.1 | 5 | NBR |
| KL30 065-050 | 65 | 50 | 18.4 | 60.41 | 63.64 | 6.35 | 5 | NBR |
| KL30 067-051 | 67 | 51 | 18.4 | 62.4 | 65.6 | 6.35 | 5 | NBR |
| KL30 070-050 | 70 | 50 | 22.4 | 64.18 | 68.34 | 6.35 | 6 | NBR |
| KL30 070-054 | 70 | 54 | 20.5 | 66 | 69 | 3.1 | 5 | NBR |
| KL30 070-055 | 70 | 55 | 20 | 66 | 68.5 | 5 | 5 | NBR |
| KL30 070-058 | 70 | 58 | 20.5 | 66 | 69.4 | 4.2 | 4 | NBR |
| KL30 075-055 | 75 | 55 | 22.4 | 69.2 | 73.3 | 6.35 | 6 | NBR |
| KL30 075-059 | 75 | 59 | 20.5 | 71 | 74 | 3.1 | 5 | NBR |
| KL30 080-060 | 80 | 60 | 22.4 | 74.15 | 78.3 | 6.35 | 6 | NBR |
| KL30 080-060/1 | 80 | 60 | 35 | 72.62 | 77.54 | 9.52 | 6 | NBR |
| KL30 080-060/2 | 80 | 60 | 25 | 75 | 78 | 6.35 | 6 | NBR |
| KL30 080-062 | 80 | 62 | 22.5 | 76 | 79 | 3.6 | 5 | NBR |
| KL30 080-065 | 80 | 65 | 20 | 76 | 78.5 | 5 | 5 | NBR |
| KL30 080-066 | 80 | 66 | 22.4 | 76 | 79.4 | 5.2 | 4.5 | NBR |
| KL30 085-065 | 85 | 65 | 22.4 | 79.15 | 83.3 | 6.35 | 6 | NBR |
| KL30 085-065/1 | 85 | 65 | 21.4 | 79.15 | 83.3 | 6.35 | 6 | NBR |
| KL30 085-075 | 85 | 75 | 20 | 81 | 83.35 | 4 | 4 | NBR |
| KL30 090-070 | 90 | 70 | 22.4 | 84.15 | 88.3 | 6.35 | 6 | NBR |
| KL30 090-072 | 90 | 72 | 22.5 | 86 | 89 | 3.2 | 5 | NBR |
| KL30 090-072/1 | 90 | 72 | 22.5 | 86 | 89 | 3.6 | 5 | NBR |
| KL30 090-075 | 90 | 75 | 20 | 86 | 88.5 | 5 | 5 | NBR |
| KL30 090-076 | 90 | 76 | 22.4 | 86 | 89.4 | 5.2 | 4.5 | NBR |
| KL30 095-075 | 95 | 75 | 22.4 | 89.15 | 93.31 | 6.5 | 6 | NBR |
| KL30 095-081 | 95 | 81 | 22.4 | 91 | 94.4 | 5.2 | 4.5 | NBR |
| KL30 100-075 | 100 | 75 | 22.4 | 93.13 | 98 | 6.35 | 6 | NBR |
| KL30 100-080 | 100 | 80 | 25.4 | 95 | 98 | 6.35 | 6 | NBR |
| KL30 100-080/1 | 100 | 80 | 35 | 92.61 | 97.51 | 9.52 | 6 | NBR |
| KL30 100-080/2 | 100 | 80 | 25 | 95 | 98 | 6.35 | 6 | NBR |
| KL30 100-082 | 100 | 82 | 22.5 | 96 | 99 | 3.6 | 5 | NBR |
| KL30 100-085 | 100 | 85 | 20 | 96 | 98.5 | 5 | 5 | NBR |
| KL30 100-086 | 100 | 86 | 22.4 | 96 | 99.4 | 5.2 | 4.5 | NBR |
| KL30 105-080 | 105 | 80 | 22.4 | 98.1 | 103 | 6.5 | 6 | NBR |
| KL30 105-080/1 | 105 | 80 | 22.4 | 98.1 | 103 | 6.35 | 6 | NBR |
| KL30 110-085 | 110 | 85 | 22.4 | 103.1 | 108 | 6.35 | 6 | NBR |
| KL30 110-085/1 | 110 | 85 | 25.4 | 103.1 | 108 | 6.35 | 6 | NBR |
| KL30 110-090 | 110 | 90 | 35 | 102.6 | 107.51 | 9.52 | 6 | NBR |
| KL30 110-090/1 | 110 | 90 | 25.3 | 104.1 | 108.3 | 6.4 | 6 | NBR |
| KL30 110-092 | 110 | 92 | 22.5 | 106 | 109 | 3.6 | 5 | NBR |
| KL30 110-095 | 110 | 95 | 20 | 105 | 108 | 5 | 5 | NBR |
| KL30 110-096 | 110 | 96 | 22.4 | 106 | 109.4 | 5.2 | 4.5 | NBR |
| KL30 115-090 | 115 | 90 | 22.4 | 108.1 | 113.02 | 6.35 | 6 | NBR |
| KL30 115-097 | 115 | 97 | 22.4 | 111 | 114 | 4.2 | 5 | NBR |
| KL30 115-097/1 | 115 | 97 | 22.5 | 111 | 114 | 3.6 | 5 | NBR |
| KL30 115-101 | 115 | 101 | 22.4 | 111 | 114.4 | 5.2 | 4.5 | NBR |
| KL30 120-095 | 120 | 95 | 22.4 | 113.1 | 118 | 6.35 | 6 | NBR |
| KL30 120-100 | 120 | 100 | 35 | 112.8 | 117.5 | 9.5 | 6 | NBR |
| KL30 120-106 | 120 | 106 | 22.4 | 116 | 119.4 | 5.2 | 4.5 | NBR |
| KL30 125-100 | 125 | 100 | 25.4 | 118.1 | 123 | 6.35 | 6 | NBR |
Multi-Scenario Applications Double Acting Compact Seal Sets With Low Friction And Superior Static And Dynamic Sealing FuMulti-Scenario Applications Double Acting Compact Seal Sets With Low Friction And Superior Static And Dynamic Sealing Fu
درخواست خود را به طور مستقیم به ما بفرستید
