محل منبع:
چین
نام تجاری:
KELONG
گواهی:
ISO9001 / IRIS
شماره مدل:
KL72
با ما تماس بگیرید

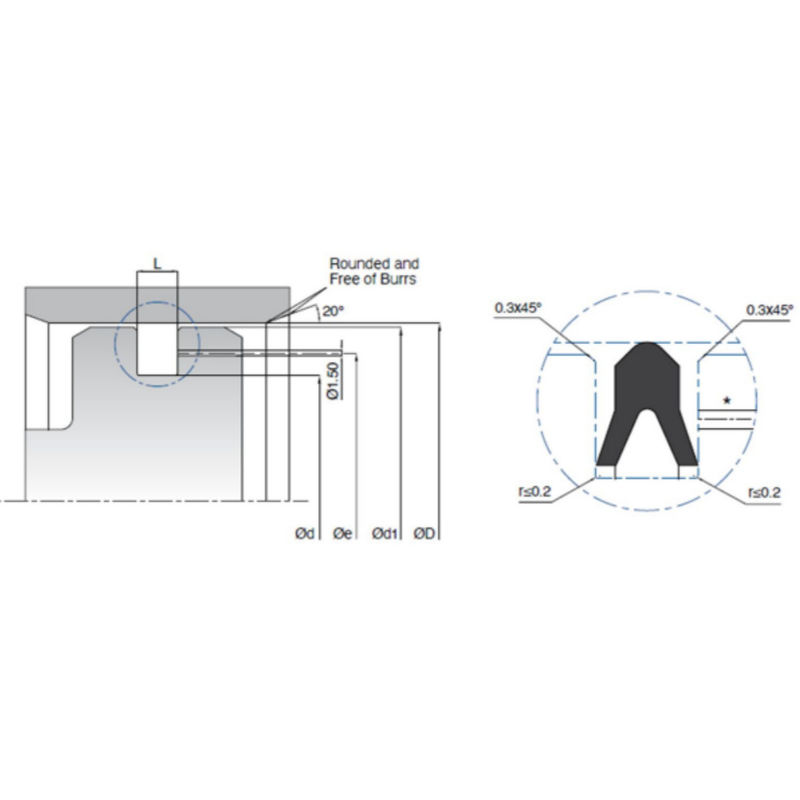

| D (H11) | d (h11) | L (+0.2/-0) | d1 (h11) | e | مواد | |
| KL72-025 | 25 | 15 | 2.3 | 24.8 | 16.6 | NBR |
| KL72-030 | 30 | 20 | 2.3 | 29.8 | 21.6 | NBR |
| KL72-032 | 32 | 22 | 2.3 | 31.8 | 23.6 | NBR |
| KL72-035 | 35 | 22.5 | 3 | 34.75 | 24 | NBR |
| KL72-040 | 40 | 27.5 | 3 | 39.75 | 29 | NBR |
| KL72-042 | 42 | 29.5 | 3 | 41.75 | 31 | NBR |
| KL72-045 | 45 | 32.5 | 3 | 44.75 | 34 | NBR |
| KL72-050 | 50 | 37.5 | 3 | 49.75 | 39 | NBR |
| KL72-055 | 55 | 39 | 3.5 | 54.7 | 42.6 | NBR |
| KL72-060 | 60 | 44 | 3.5 | 59.7 | 45.5 | NBR |
| KL72-063 | 63 | 47 | 3.5 | 62.7 | 48.6 | NBR |
| KL72-070 | 70 | 55.5 | 3.5 | 69.7 | 57 | NBR |
| KL72-080 | 80 | 61 | 4.1 | 79.7 | 62.6 | NBR |
| KL72-090 | 90 | 71 | 4.1 | 89.7 | 72.6 | NBR |
| KL72-100 | 100 | 79 | 4.6 | 99.7 | 80.6 | NBR |
| KL72-125 | 125 | 101 | 5.1 | 124.6 | 102.6 | NBR |
| KL72-140 | 140 | 113.5 | 5.6 | 139.6 | 115 | NBR |
| KL72-150 | 150 | 125 | 6.2 | 149.6 | 126.6 | NBR |
| KL72-160 | 160 | 131.5 | 6.2 | 159.6 | 133 | NBR |
| KL72-200 | 200 | 163 | 8.8 | 199.6 | 164.6 | NBR |
| KL72-355 | 355 | 313 | 10.8 | 354.6 | 314.6 | NBR |
درخواست خود را به طور مستقیم به ما بفرستید
