محل منبع:
چین
نام تجاری:
KELONG
گواهی:
ISO9001 / IRIS
شماره مدل:
KL99
Contact Us

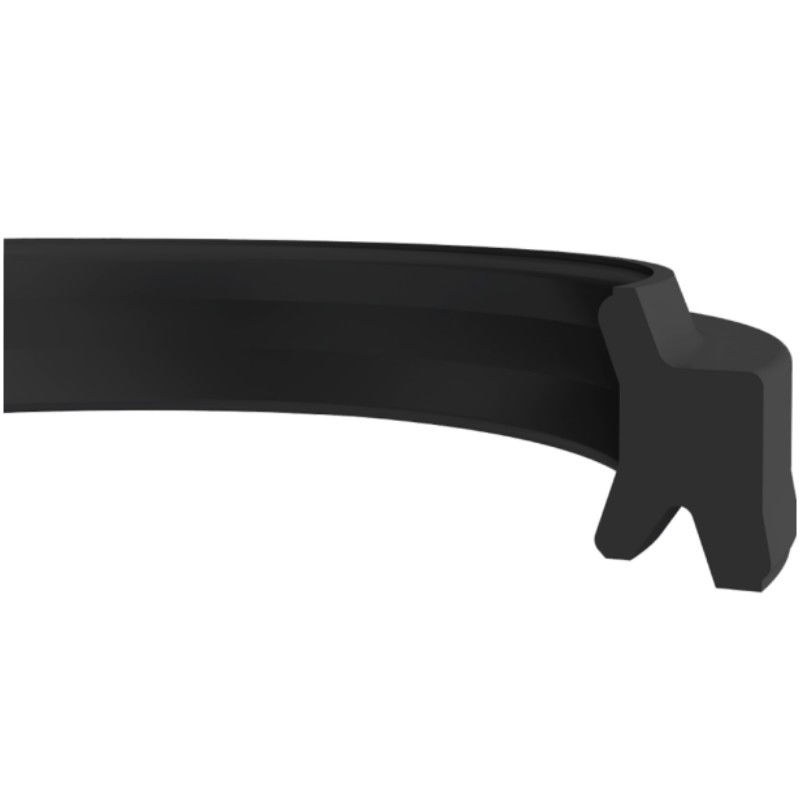

KL99 مهر و موم میله پنوماتیک یک عنصر مهر و موم تک اثر است استفاده از ساختار U-Cup دارای عملکرد مهر و موم برتر است
KL99pneumatic rod seal is a single acting sealing element that can perform both functions together with its dust lip preventing that foreign particles from outer environment penetrate in the cylinder and the u-cup structure that provides sealing.

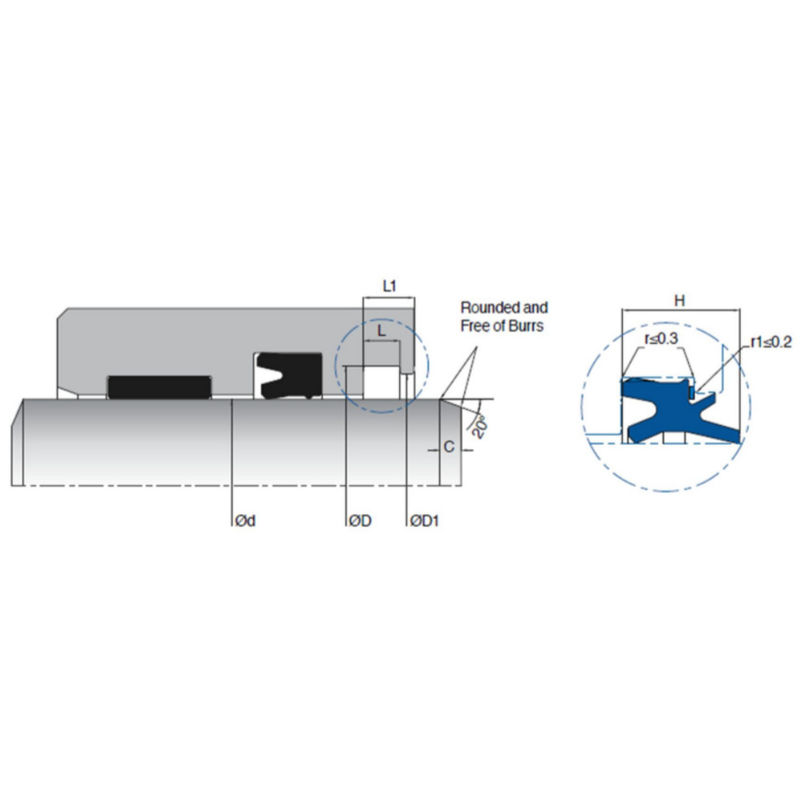

| d (f9) | D (H11) | D1 (+0.2/-0) | L (+0.2/-0) | L1 | H | مواد | |
| KL99-008 | 8 | 12 | 9.6 | 4 | 6 | 4.9 | NBR |
| KL99-010 | 10 | 14 | 11.6 | 4 | 6 | 4.9 | NBR |
| KL99-012 | 12 | 16 | 13.6 | 4 | 6 | 4.9 | NBR |
| KL99-014 | 14 | 18 | 15.6 | 4 | 6 | 4.9 | NBR |
| KL99-016 | 16 | 24 | 19.4 | 6 | 8 | 7.5 | NBR |
| KL99-020 | 20 | 28 | 23.4 | 6 | 8 | 7.5 | NBR |
| KL99-022 | 22 | 30 | 25.4 | 6 | 8 | 7.5 | NBR |
| KL99-025 | 25 | 33 | 28.4 | 6 | 8 | 7.5 | NBR |
| KL99-030 | 30 | 40 | 34 | 7 | 9 | 8.5 | NBR |
| KL99-040 | 40 | 50 | 44 | 7 | 9 | 8.5 | NBR |
| KL99-045 | 45 | 55 | 49 | 7 | 9 | 8.5 | NBR |
| KL99-050 | 50 | 60 | 54 | 7 | 9 | 8.5 | NBR |
